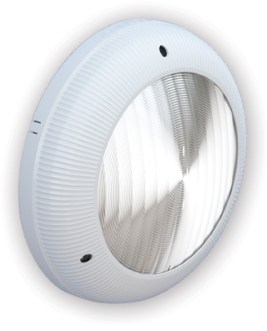

Product Description – Aquaquip QC LED Replacement Multi
Manufacturer Part Number – 23609066
Manufacturer – Aquaquip
Technical Data Specifications
| Power Requirement for Fixed Colour and Multi-Colour LEDs: | 12V ~ 32V AC 50/60Hz |
| Pool Light Protection Rating: | IPX8 to 2.0m depth |
| Temperature Range: | 0°C ~ +40°C pool water temperature |
| Installation Location: | 200mm ~ 400mm below water level |
| Power Consumption – Fixed Colour LEDs: : | Maximum 16VA at all Voltages 12V ~ 32V |
| Power Consumption – (Multi Colour LEDs): : | Maximum 22VA at all Voltages 12V ~ 32V |
| Voltage Tolerance (Fixed Colour and Multi-Colour LEDs): | 10.5V AC ~ 35V AC |
| Light Colour: | White >5,000K, Blue 475nm, Green 525nm |
| Light Output (Typical): | White = 1050 Lumens, Blue = 300 Lumens, Green = 650 Lumens |
| Fault Protection: | Power Cycle “Run Dry” thermal cut-out. Voltage transient clamping |
End Use – Pool light replacement
